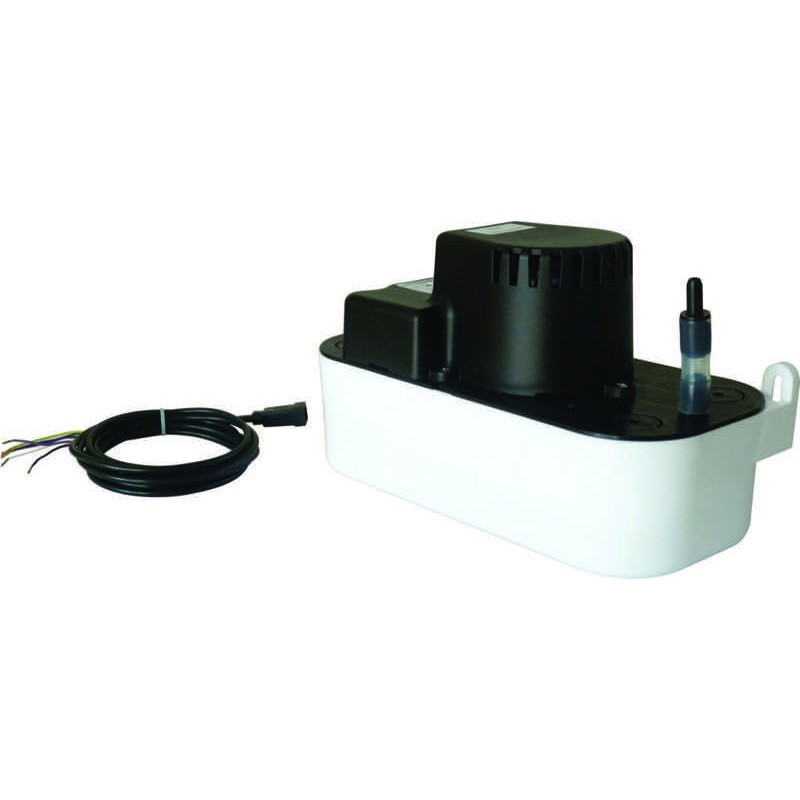

ECOTANK 2.5 - Condensate pump flowrate 300 l/h
ECOTANK 2.5 - Condensate pump flowrate 300 l/h
Ecotank + 1.2 - 2.5 - Technical specifications
Centrifugal monoblock pump with a high flow rate
| Ecotank + | 1.2 L | 2.5 L | |
| Liquid type: condensates with a pH > 2.5 and a temperature | < 40°C | < 40°C | |
| Power supply/Power | 230 V 50 Hz / 65 W | ||
| Operating temperature | from 3°C to 45°C | ||
| Storage temperature | from 0°C to 70°C | ||
| Class | 1 | ||
| Maximum flow | 300 l/h | ||
| Maximum head | 4,6 meter | ||
| Duty factor | S3 (30%) 170 s ON / 340 s OFF | ||
| Built-in alarm: NO + NC contact | 3A max. resistive load at 250V 50Hz | ||
| Tank volume | 1,2 L | 2,5 L | |
| Motor thermal protection | SI | ||
| Protection class | IP20 | ||
| Pump height | 12,9 cm | 15,9 cm | |
| Maximum operating altitude | < 2.500 m | ||
| Dimensions | 28 x 13 x 12,9 cm | 28 x 13 x 15,9 cm | |
Reversible tank for easy adaptation
Equipped with hose adapter from 6/9 mm to 9/12 mm
Code: 35100045
Model: ECOTANK 2.5
Description: Condensate pump flowrate 300 l/h
35100045
