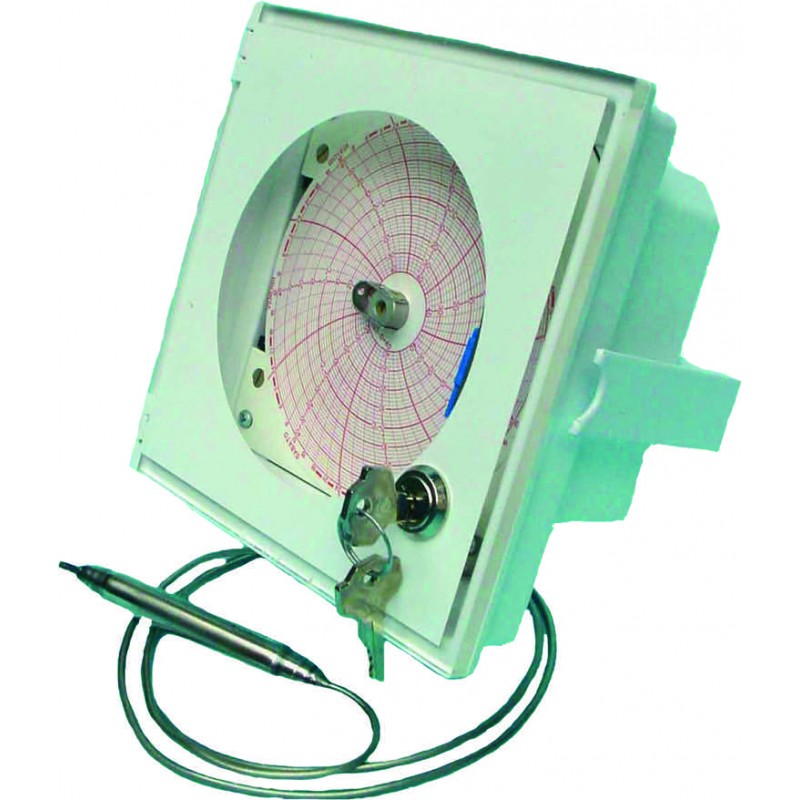

Inert gas graphic thermorecorder RTD-Q-35+15-JR - -35°C
RTD-Q-35+15-JR - -35°C
Inert gas graphic thermorecorder
| Technical specifications | |
| Precision | ± 2% end off scale |
| Box | Thermoplastic material |
| Box dimension | 132x132 mm |
| External dimension | 148x148 mm |
| Transparent | Policarbonate |
| Thermometric spring | Molybdenum steel |
| Amplifier movement | OT58 with AISI 316 stainless steel pin |
| Capillary | AISI 304 stainless steel |
| Diagrammatic disk | Ø 110 mm |
| Reader width | 40 mm |
| Clock movement | by battery |
| Battery | 1.5 V LR03 alcaline |
| Protection degrees | IP20 |
Code: 29012065
Model: RTD-Q-35+15-JR
Min temp.: -35°C
Max temp.: +15°C
29012065
